My intial thoughts evolved around the concept of a hogs head, with an opening mouth and sharp tusks. You can tell from the sketch that my key skills do not lie in drawing, but I hope to get someone else with artistic flair to do the final paint job!

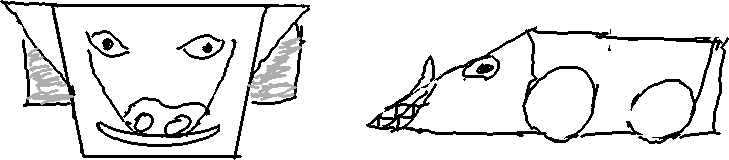

The hogs head

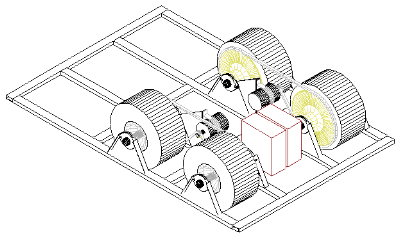

The rolling chassis

Underneath the attractive (?) head, the robot will have a metal box section chassis, something like this. It will run on four go-kart wheels, each side pair being driven by an electric motor.

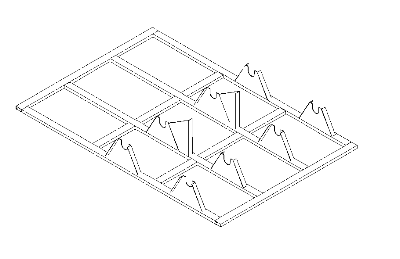

Just the metal chassis

The metalwork currently being working on is this.

Last updated 25th February 2002
